Cash Drawer

Integrating a cash drawer into your POS store enhances cash handling accuracy and speeds up checkout times, leading to improved customer satisfaction. This guide introduces compatible cash drawer models, usage requirements, and setup procedures for SHOPLINE POS.

Note: Please contact SHOPLINE before purchasing a cash drawer to ensure the compatibility of the device for your POS.





Supported Cash Drawers

Brand

Model
Star Micronics mPOP™
SUNMI Sunmi Mini Cash Drawer



Note: In addition to the listed models, SHOPLINE’s POS system also supports other cash drawers that can be connected to your receipt printer.





Usage Requirements

To use the above hardwares with your SHOPLINE POS, you need to meet the following requirements:

  • Latest version of SHOPLINE POS
  • A compatible iPad or iPhone running iOS 13 or later, or a compatible Android device running version 7.0 (Nougat) or later





Installing the Cash Drawer



USB Connection

Connect the cash drawer to the receipt printer with the provided cash drawer cable. Plug the larger end of the cable into the cash drawer and the smaller end into the receipt printer.



Bluetooth Connection

Follow these steps to connect the cash drawer to your receipt printer via Bluetooth:

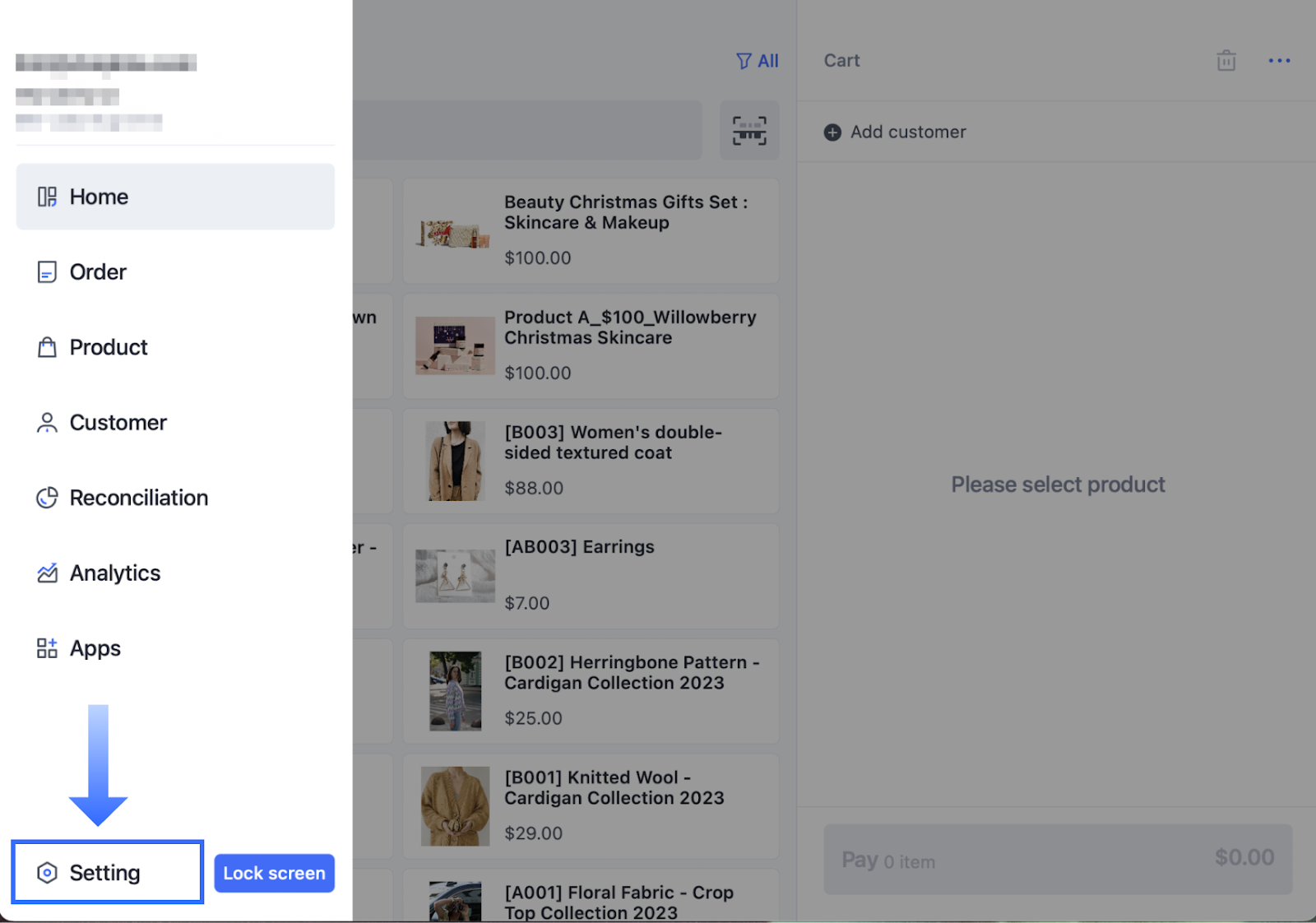

  1. Open your POS app and tap the hamburger icon in the upper left corner, then click Setting.
    51c96d9c-8a7e-4e7d-a6a5-1ba3fa2e2058

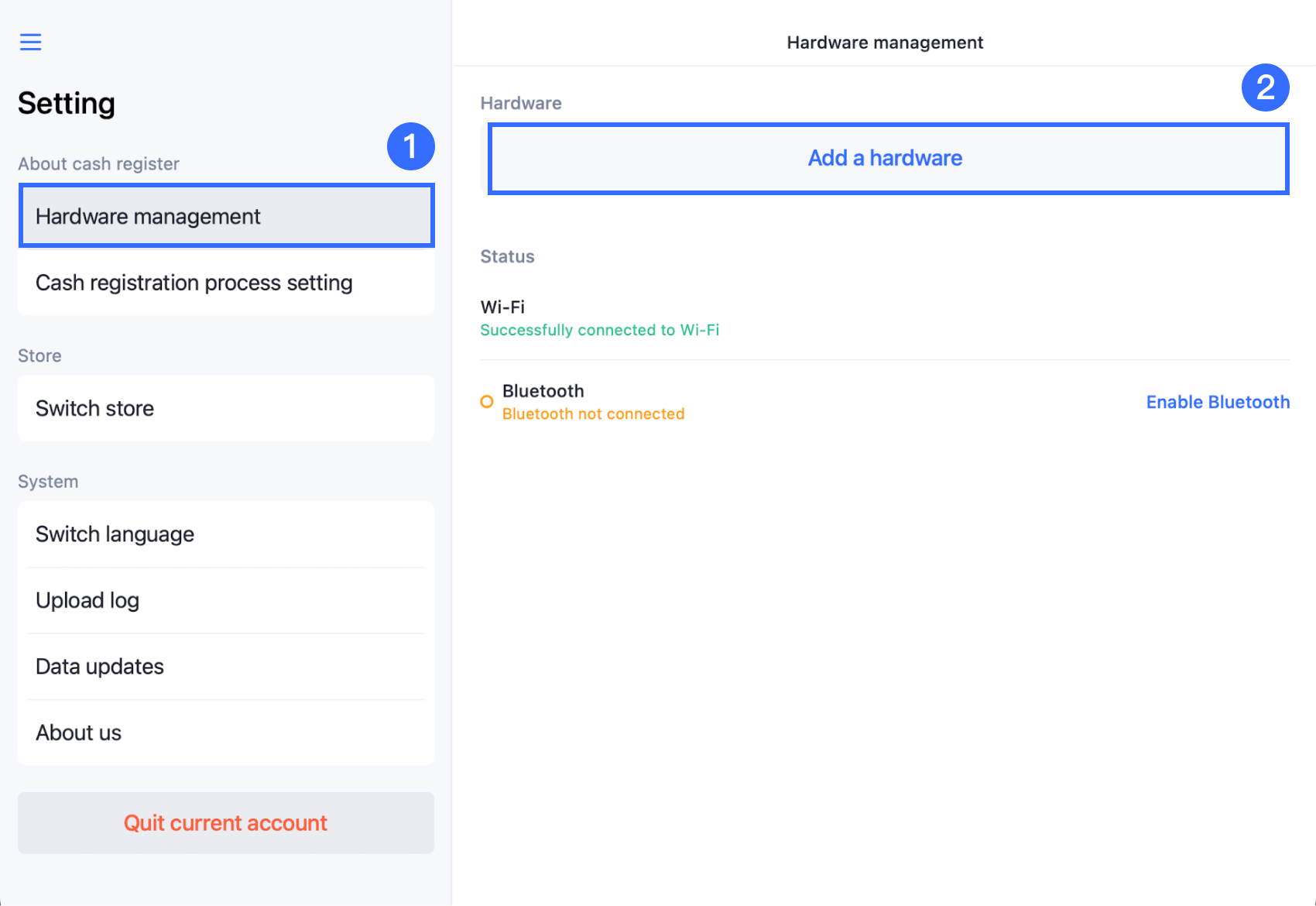

  2. Go to Hardware management and select Add a hardware. 3.2 Hardware management _ Add a hardware.png

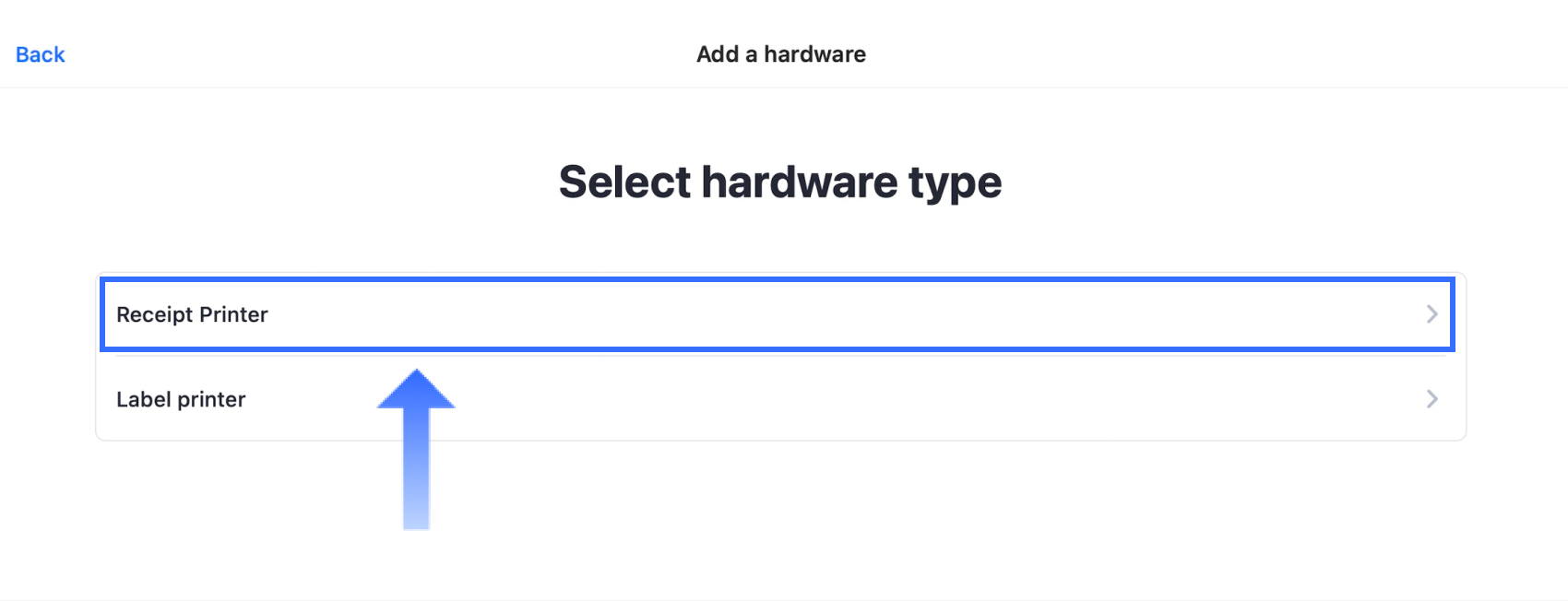

  3. On the "Select hardware type" page, choose Receipt Printer.
    3.3 Click Receipt Printer.png

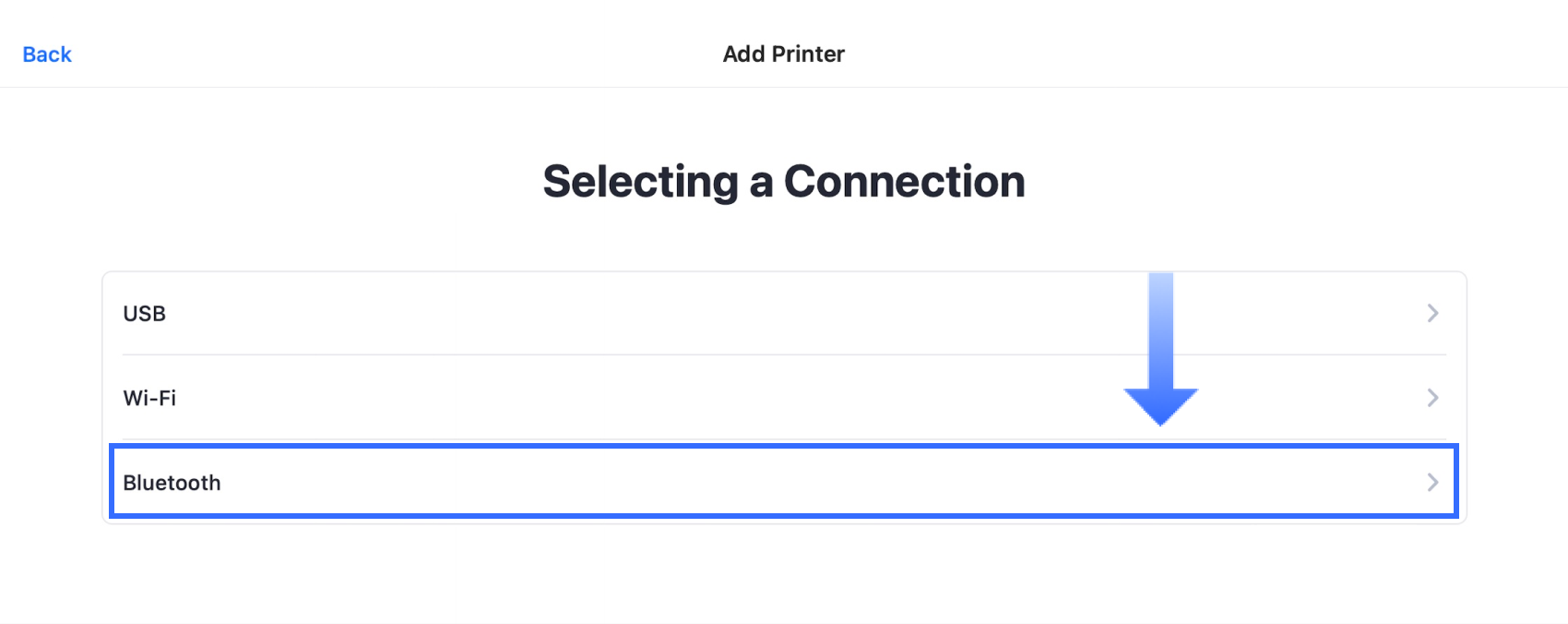

  4. Select Bluetooth as the connection method.
    3.4 Tap Bluthbooth.png

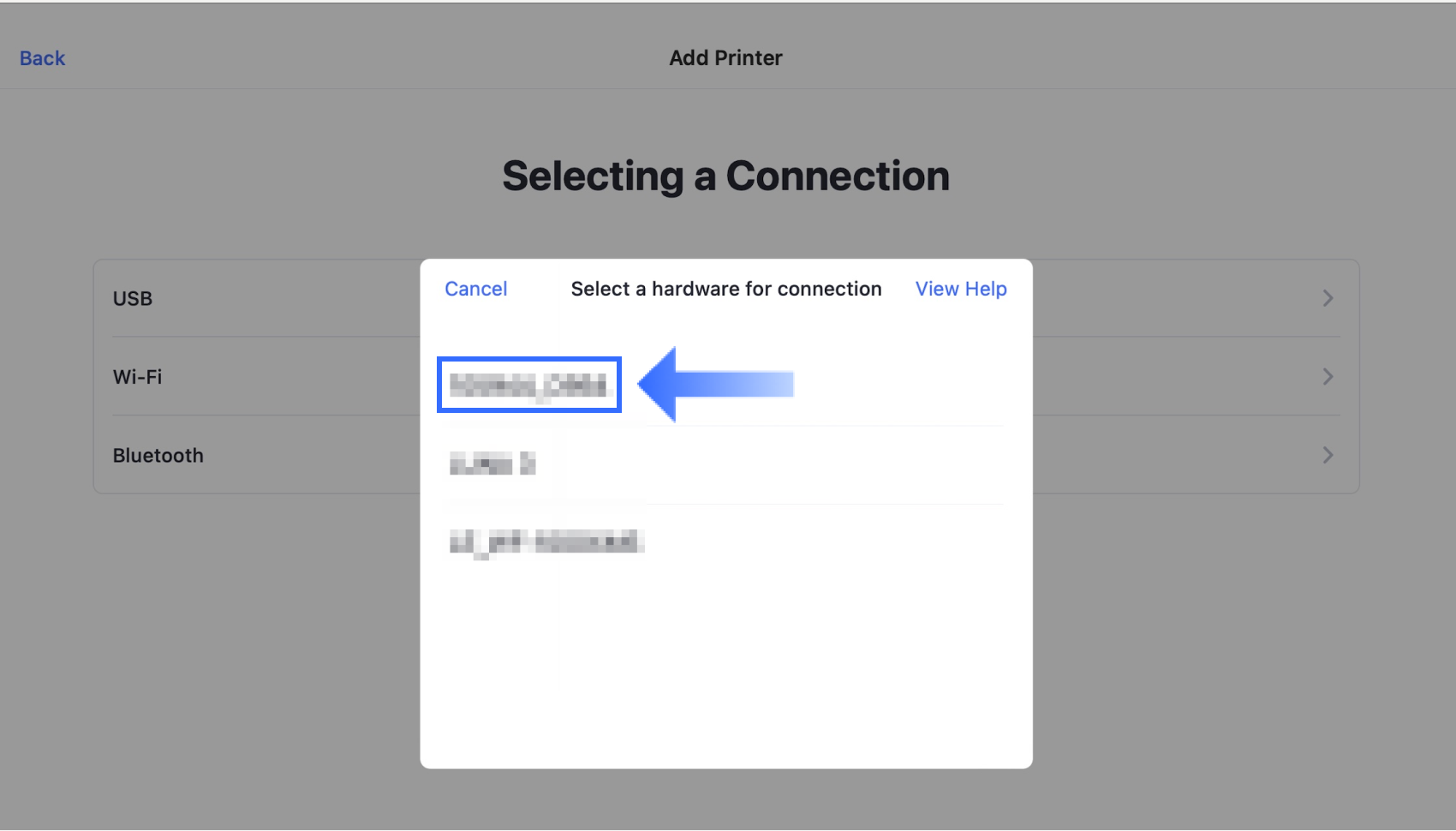

  5. Choose the cash drawer you wish to connect to the printer.
    3.5 Select hardware.png





Opening the Cash Drawer

You can manually open the cash drawer using the accompanying key or wirelessly from the terminal device. The terminal device is connected to the cash drawer through the receipt printer. The cash drawer opens automatically after each transaction or when you click the three-dot Button > Open the cashier at the upper right corner of the cart in the SHOPLINE POS app.
